Endress+Hauser Proline Promass O500 O300 Coriolis Flowmeter 8O5B/8O3B

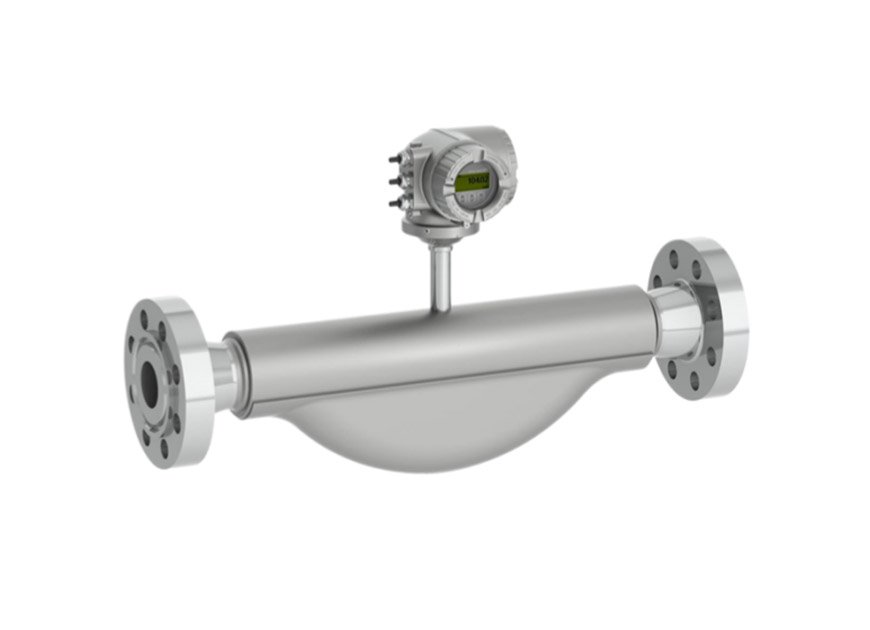

Proline Promass O 300 Coriolis flowmeter

Robust high-pressure flowmeter with a compact, easily accessible transmitter

Application

• Measuring principle operates independently of physical fluid properties such as viscosity or density

• For premium accuracy at highest process pressures, fully suitable for offshore conditions Device properties

• Measuring tube in 25Cr Duplex, 1.4410 (UNS S32750)

• Process pressure up to PN 250 (Class 1500)

• Nominal diameter: DN 80 to 250 (3 to 10")

• Compact dual-compartment housing with up to 3 I/Os

• Backlit display with touch control and WLAN access

• Remote display available

Your benefits

• Maximum safety – highest resistance to stress corrosion cracking

• Fewer process measuring points – multivariable measurement (flow, density, temperature)

• Space-saving installation – no in-/outlet run needs

• Full access to process and diagnostic information numerous, freely combinable I/Os and Ethernet

• Reduced complexity and variety – freely configurable I/O functionality • Integrated verification – Heartbeat Technology

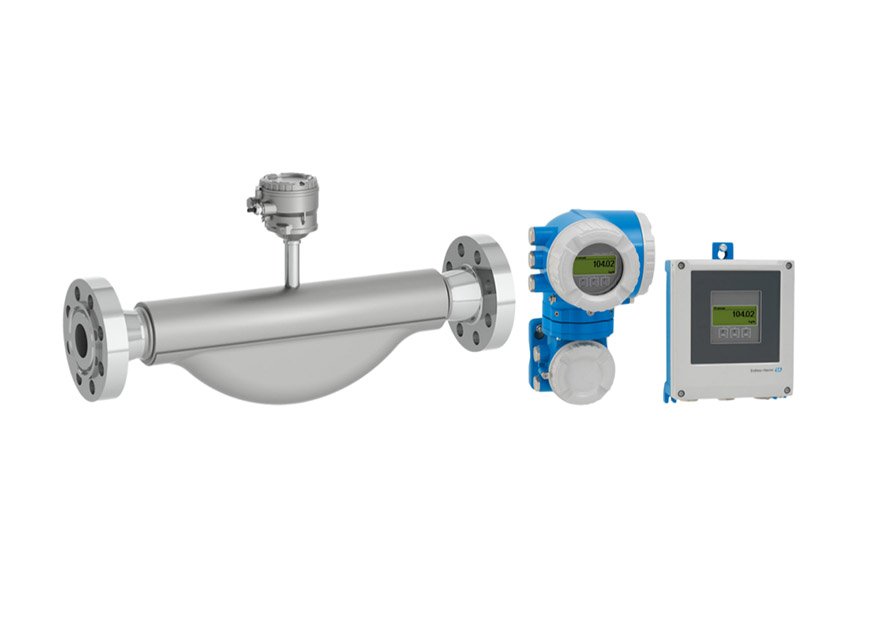

Proline Promass O 500 Coriolis flowmeter

Robust high-pressure flowmeter, as remote version with up to 4 I/Os

Application

• Measuring principle operates independently of physical fluid properties such as viscosity or density

• For premium accuracy at highest process pressures, fully suitable for offshore conditions Device properties

• Measuring tube in 25Cr Duplex, 1.4410 (UNS S32750)

• Process pressure up to PN 250 (Class 1500)

• Nominal diameter: DN 80 to 250 (3 to 10")

• Remote version with up to 4 I/Os

• Backlit display with touch control and WLAN access

• Standard cable between sensor and transmitter

Your benefits

• Maximum safety – highest resistance to stress corrosion cracking

• Fewer process measuring points – multivariable measurement (flow, density, temperature)

• Space-saving installation – no in-/outlet run needs

• Full access to process and diagnostic information numerous, freely combinable I/Os and Ethernet

• Reduced complexity and variety – freely configurable I/O functionality • Integrated verification – Heartbeat Technology
