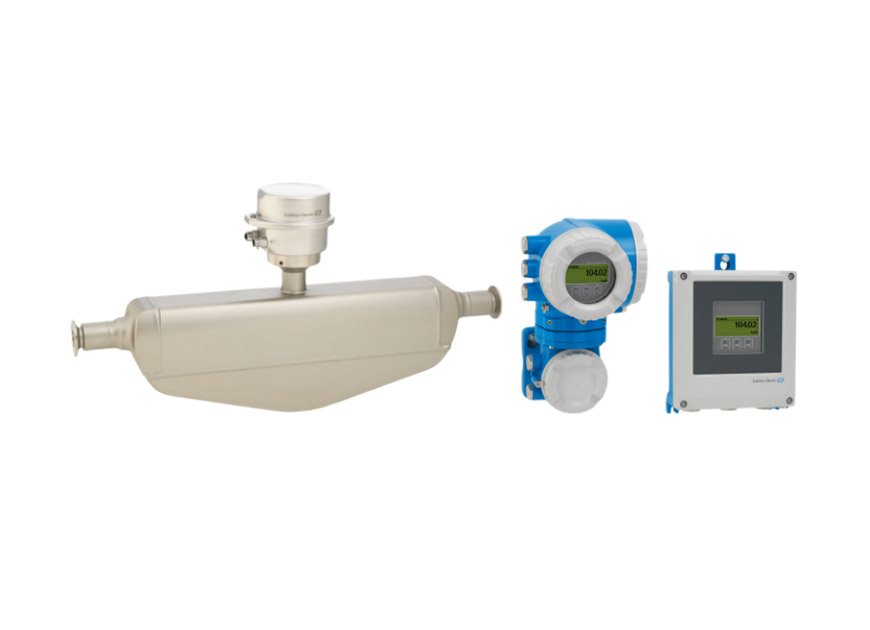

Specialist for life sciences, as remote version with up to 4 I/Os
Application
• Measuring principle operates independently of physical fluid properties such as viscosity or density
• Dedicated to applications under sterile conditions in the life sciences industry Device properties
• ASME BPE, 3-A, EHEDG conform & low delta-ferrite
• Electropolished measuring tube in 1.4435 (316L)
• Fast recovery from CIP/SIP
• Remote version with up to 4 I/Os
• Backlit display with touch control and WLAN access
• Standard cable between sensor and transmitter
Your benefits
• Highest process quality – fully compliant to industry requirements
• Fewer process measuring points – multivariable measurement (flow, density, temperature)
• Space-saving installation – no in-/outlet run needs
• Full access to process and diagnostic information – numerous, freely combinable I/Os and Ethernet
• Reduced complexity and variety – freely configurable I/O functionality • Integrated verification – Heartbeat Technology

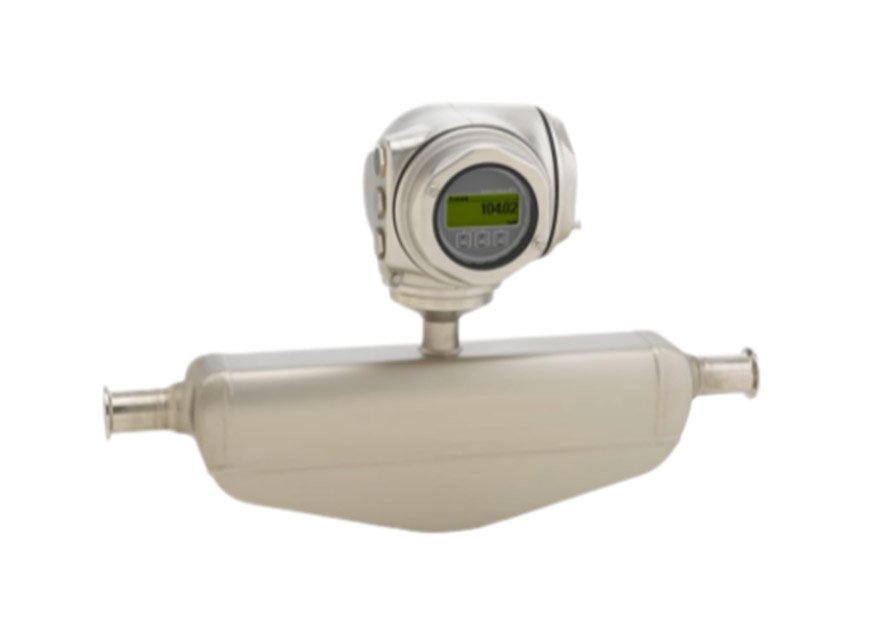

Specialist for life sciences with a compact, easily accessible transmitter
Application
• Measuring principle operates independently of physical fluid properties such as viscosity or density
• Dedicated to applications under sterile conditions in the life sciences industry Device properties
• ASME BPE, 3-A, EHEDG conform & low delta-ferrite
• Electropolished measuring tube in 1.4435 (316L)
• Fast recovery from CIP/SIP
• Compact hygienic dual-compartment housing with IP69 and up to 3 I/Os • Backlit display with touch control and WLAN access
• Remote display available
Your benefits
• Highest process quality – fully compliant to industry requirements
• Fewer process measuring points – multivariable measurement (flow, density, temperature)
• Space-saving installation – no in-/outlet run needs
• Full access to process and diagnostic information – numerous, freely combinable I/Os and Ethernet
• Reduced complexity and variety – freely configurable I/O functionality
• Integrated verification – Heartbeat Technology

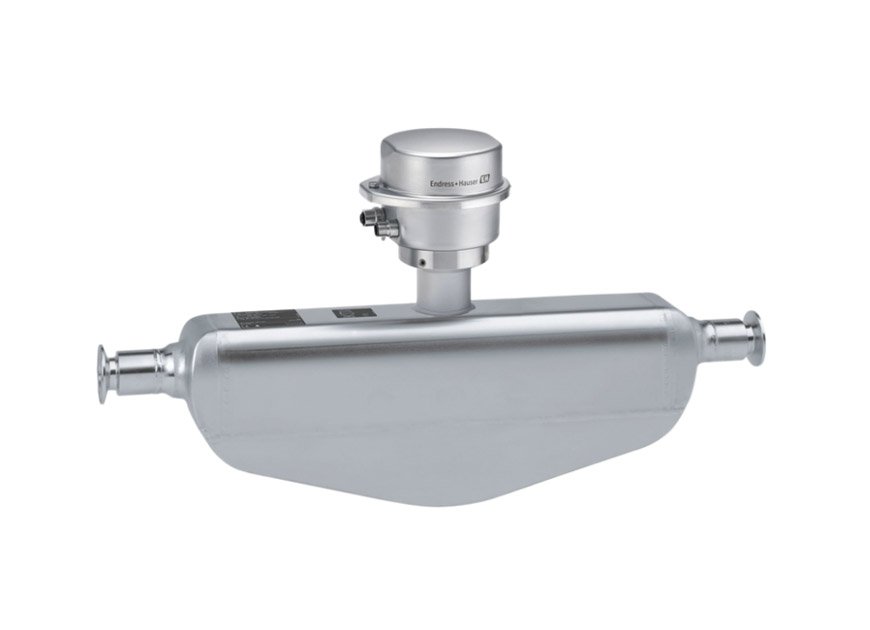

Specialist for life sciences with an ultra-compact transmitter
Application
• Measuring principle operates independently of physical fluid properties such as viscosity or density
• Dedicated to applications under sterile conditions in the life sciences industry Device properties
• ASME BPE, 3-A, EHEDG conform & low delta-ferrite
• Electropolished measuring tube in 1.4435 (316L)
• Fast recovery from CIP/SIP
• Robust, ultra-compact transmitter housing
• Highest degree of protection: IP69K
• Local display available
Your benefits
• Highest process quality – fully compliant to industry requirements
• Fewer process measuring points – multivariable measurement (flow, density, temperature)
• Space-saving installation – no in-/outlet run needs
• Space‐saving transmitter – full functionality on smallest footprint
• Time‐saving local operation without additional software and hardware – integrated web server
• Integrated verification – Heartbeat Technology
Specification | 8P1B (Promass P100) | 8P3B (Promass P300) | 8P5B (Promass P500) |
Product Series | Proline Promass P 100 | Proline Promass P 300 | Proline Promass P 500 |
Measuring Principle | Coriolis effect, twin bent tube design | Coriolis effect, twin bent tube design | Coriolis effect, twin bent tube design |
Measured Variables | Mass flow, volume flow, density, temperature | Mass flow, volume flow, density, temperature | Mass flow, volume flow, density, temperature |
Nominal Diameter | DN 6 … DN 50 | DN 6 … DN 80 | DN 6 … DN 80 |
Applicable Media | Liquids, gases, low to medium viscosity fluids | Liquids, gases, viscous & aggressive fluids | Liquids, gases, viscous, high purity & corrosive media |
Mass Flow Accuracy (Liquid) | ±0.15 % o.r. | ±0.10 % o.r. | ±0.05 % o.r. |
Mass Flow Accuracy (Gas) | ±0.75 % o.r. | ±0.50 % o.r. | ±0.35 % o.r. |
Density Accuracy | ±0.001 g/cm³ | ±0.0005 g/cm³ | ±0.0002 g/cm³ |
Process Temperature | −40 °C … +150 °C | −50 °C … +200 °C | −50 °C … +200 °C |
Max Process Pressure | PN 40 / Class 150 | PN 100 / Class 600 | PN 100 / Class 600 |
Wetted Materials | 1.4435 (316L) | 1.4435 (316L), Alloy C22, Tantalum | 1.4435 (316L), high-alloy optional |
Process Connection | Thread, Tri-Clamp, compact flange | Flange, thread, hygienic fitting | Flange, high-pressure & special connections |
Transmitter Type | Ultra-compact integral | Compact integral transmitter | Modular, integral / remote version |
Power Supply | 18–30 VDC / 85–260 VAC | 16–62 VDC / 85–260 VAC | 16–62 VDC / 85–260 VAC |
Communication & Output | 4–20 mA HART, pulse / frequency | 4–20 mA HART, pulse, Modbus RTU, PA | HART7, PROFIBUS, PROFINET, EtherNet/IP, FF |
Enclosure Rating | IP67 / NEMA 4X | IP66 / IP67 / NEMA 4X | IP67 / IP69K / NEMA 4X |
Ambient Temperature | −40 °C … +60 °C | −40 °C … +60 °C | −40 °C … +60 °C |
Approvals | CE, ATEX, IECEx | CE, ATEX, IECEx, FM, CSA, SIL 2 | CE, ATEX, IECEx, SIL 2/3, PED, custody transfer approval |
Key Features | Cost-effective, compact footprint, basic process measurement | Multi-IO, strong chemical compatibility, stable performance | High-precision custody transfer, Heartbeat Technology, full diagnostic |
Typical Applications | General industry, auxiliary pipelines, simple batching | Chemical, oil & gas, food, pharmaceutical process | Custody transfer, high-precision dosing, critical process media |
Packaging: Original box
