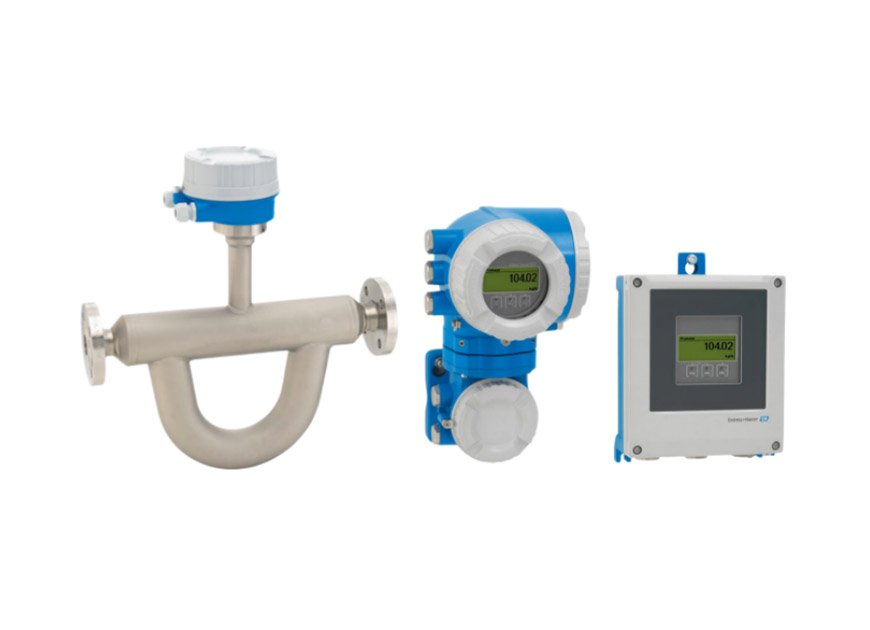

Innovative specialist for challenging applications, as remote version with up to 4 I/Os
Application
• Measuring principle operates independently of physical fluid properties such as viscosity or density
• Highest measurement performance for custody transfer, density and under tough process conditions
Device properties
• Mass/volume flow: measurement error ±0.05 %
• Density: measurement error ±0.1 kg/m3
• High turndown due to low pressure loss/zero point
• Remote version with up to 4 I/Os
• Backlit display with touch control and WLAN access
• Standard cable between sensor and transmitter
Your benefits
• Secured measuring quality – unmatched accuracy of mass flow, volume flow and density
• Optimized performance for liquids with entrained gas – MFT (Multi-Frequency Technology)
• Fewer process measuring points – multivariable measurement (flow, density, temperature)
• Space-saving installation – no in-/outlet run needs
• Full access to process and diagnostic information – numerous, freely combinable I/Os and Ethernet
• Reduced complexity and variety – freely configurable I/O functionality • Integrated verification – Heartbeat Technology

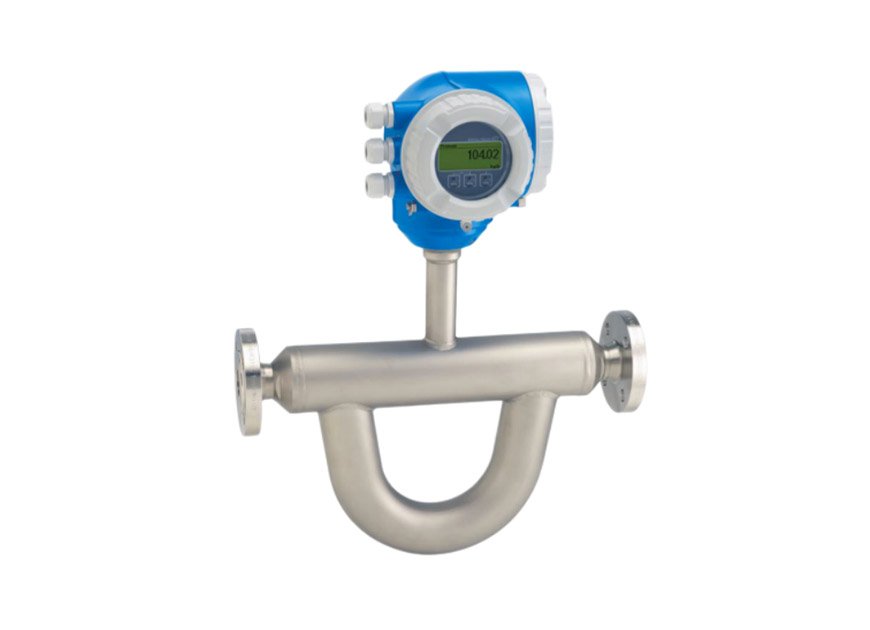

Innovative specialist for challenging applications with a compact, easily accessible transmitter
Application
Measuring principle operates independently of physical fluid properties such as viscosity or density
• Highest measurement performance for custody transfer, density and under tough process conditions
Device properties
• Mass/volume flow: measurement error ±0.05 %
• Density: measurement error ±0.1 kg/m3
• High turndown due to low pressure loss/zero point
• Compact dual-compartment housing with up to 3 I/Os
• Backlit display with touch control and WLAN access
• Remote display available
Your benefits
• Secured measuring quality – unmatched accuracy of mass flow, volume flow and density
• Optimized performance for liquids with entrained gas – MFT (Multi-Frequency Technology)
• Fewer process measuring points – multivariable measurement (flow, density, temperature)
• Space-saving installation – no in-/outlet run needs
• Full access to process and diagnostic information – numerous, freely combinable I/Os and Ethernet
• Reduced complexity and variety – freely configurable I/O functionality
• Integrated verification – Heartbeat Technology
Specification | 8Q3B (Promass Q 300) | 8Q5B (Promass Q 500) |
Product Series | Proline Promass Q 300 | Proline Promass Q 500 |
Measuring Principle | Coriolis effect, single straight tube design | Coriolis effect, single straight tube design |
Measured Variables | Mass flow, volume flow, density, temperature | Mass flow, volume flow, density, temperature |
Nominal Diameter | DN 8 … DN 50 | DN 15 … DN 80 |
Suitable Media | Hygienic liquids, gases, high-purity fluids; fully CIP/SIP compatible | Ultra-high purity liquids, gases, aggressive hygienic media; CIP/SIP cleanable |
Mass Flow Accuracy (Liquid) | ±0.10 % o.r. | ±0.05 % o.r. |
Mass Flow Accuracy (Gas) | ±0.50 % o.r. | ±0.35 % o.r. |
Density Accuracy | ±0.0005 g/cm³ | ±0.0002 g/cm³ |
Process Temperature Range | −50 °C … +150 °C (SIP compatible up to 150 °C) | −50 °C … +200 °C (SIP compatible up to 150 °C) |
Max Process Pressure | PN 40 / Class 300 | PN 100 / Class 600 |
Wetted Materials | 1.4435 (316L stainless steel); optional Alloy C22, Tantalum | 1.4435 (316L); high-alloy material options; standard electropolished surface finish |
Process Connection | Hygienic clamp (Tri-Clamp), DIN 11851, SMS, RJT, compact flange | Hygienic clamp, standard flange, high-pressure hygienic connections |
Transmitter Design | Compact integral transmitter | Modular integral / remote mount transmitter |
Power Supply | 16 … 62 VDC / 85 … 260 VAC | 16 … 62 VDC / 85 … 260 VAC |
Output & Communication | 4–20 mA HART, Pulse / Frequency, Modbus RTU; optional PROFIBUS PA | HART 7, PROFINET, EtherNet/IP, FOUNDATION Fieldbus, Digital I/O |
Enclosure Rating | IP66 / IP67 / NEMA 4X | IP67 / IP69K / NEMA 4X |
Ambient Temperature | −40 °C … +60 °C | −40 °C … +60 °C |
Global Approvals | FDA, 3-A, EHEDG, CE, ATEX, IECEx, SIL 2 | FDA, 3-A, EHEDG, CE, ATEX, IECEx, SIL 2/3, PED, USP Class VI |
Key Features | Hygienic crevice-free design, CIP/SIP compatible, compact footprint, Heartbeat Technology | Ultra-high purity grade, electropolished surface, remote installation flexibility, full diagnostic functions |
Typical Applications | Food & beverage, dairy, brewery, standard pharmaceutical processes | Biotechnology, high-purity pharmaceutical, sterile filling, critical hygienic processes |
Packaging: Original box
