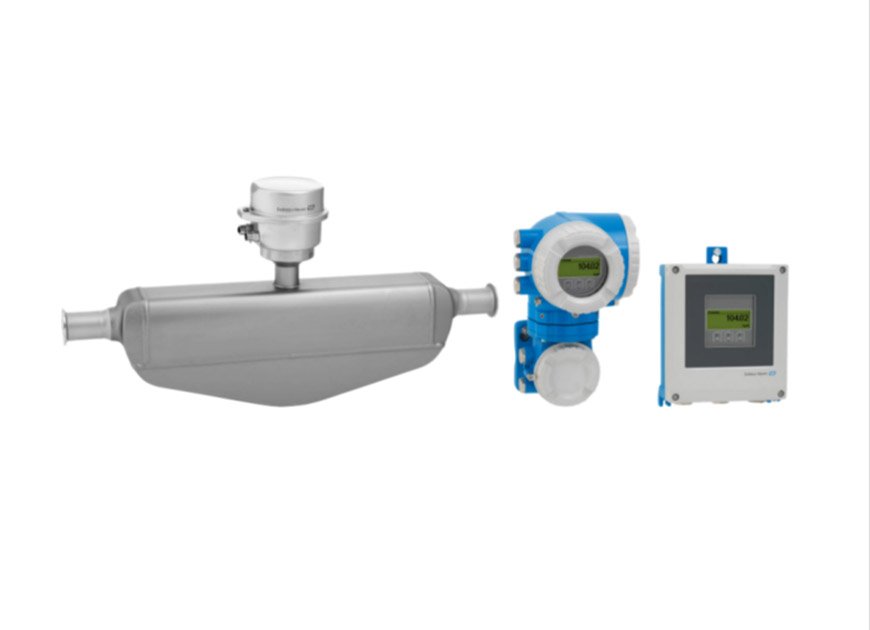

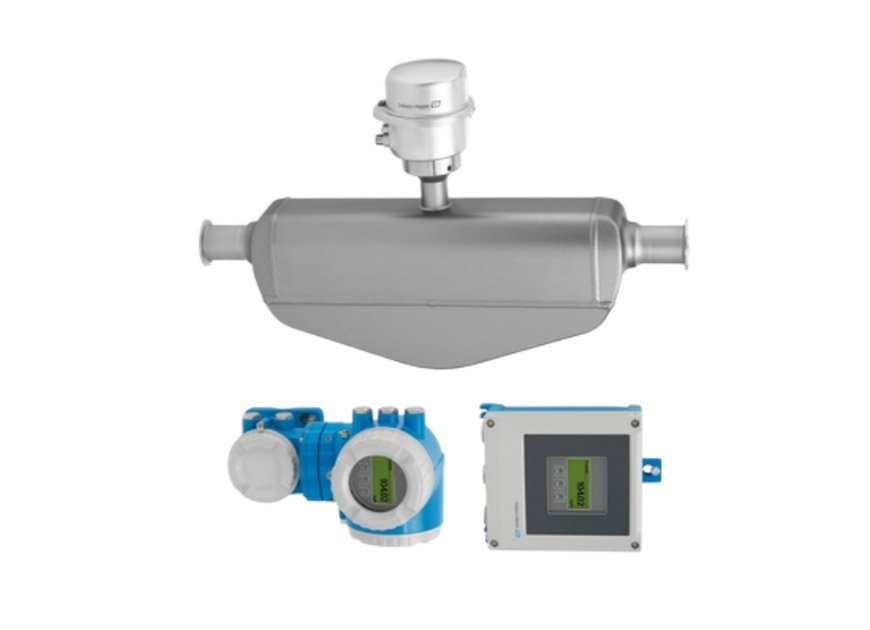

Easy-to-clean device with self-drainable single-tube system, as remote version with up to 4 I/Os
Application
• Measuring principle operates independently of physical fluid properties such as viscosity or density
• Dedicated to applications requiring optimal cleanability under hygienic conditions Device properties
• Large range of hygienic process connections
• 3-A and EHEDG conform
• Fast recovery from CIP/SIP
• Remote version with up to 4 I/Os
• Backlit display with touch control and WLAN access
• Standard cable between sensor and transmitte
Your benefits
• Increased process safety – easily cleanable and fully self‐ drainable tube design
• Fewer process measuring points – multivariable measurement (flow, density, temperature)
• Space-saving installation – no in-/outlet run needs
• Full access to process and diagnostic information – numerous, freely combinable I/Os and Ethernet
• Reduced complexity and variety – freely configurable I/O functionality • Integrated verification – Heartbeat Technology

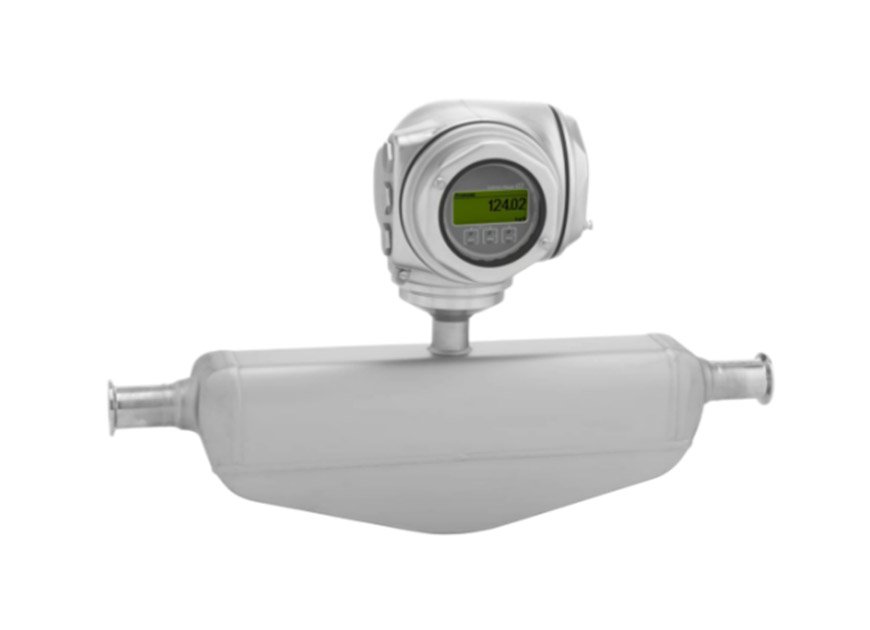

Easy-to-clean, self-drainable single-tube system with a compact, easily accessible transmitter
Application
• Measuring principle operates independently of physical fluid properties such as viscosity or density
• Dedicated to applications requiring optimal cleanability under hygienic conditions Device properties
• Large range of hygienic process connections
• 3-A and EHEDG conform
• Fast recovery from CIP/SIP
• Compact hygienic dual-compartment housing with IP69 and up to 3 I/Os • Backlit display with touch control and WLAN access
• Remote display available
Your benefits
• Increased process safety – easily cleanable and fully self‐ drainable tube design
• Fewer process measuring points – multivariable measurement (flow, density, temperature)
• Space-saving installation – no in-/outlet run needs
• Full access to process and diagnostic information – numerous, freely combinable I/Os and Ethernet
• Reduced complexity and variety – freely configurable I/O functionality • Integrated verification – Heartbeat Technology

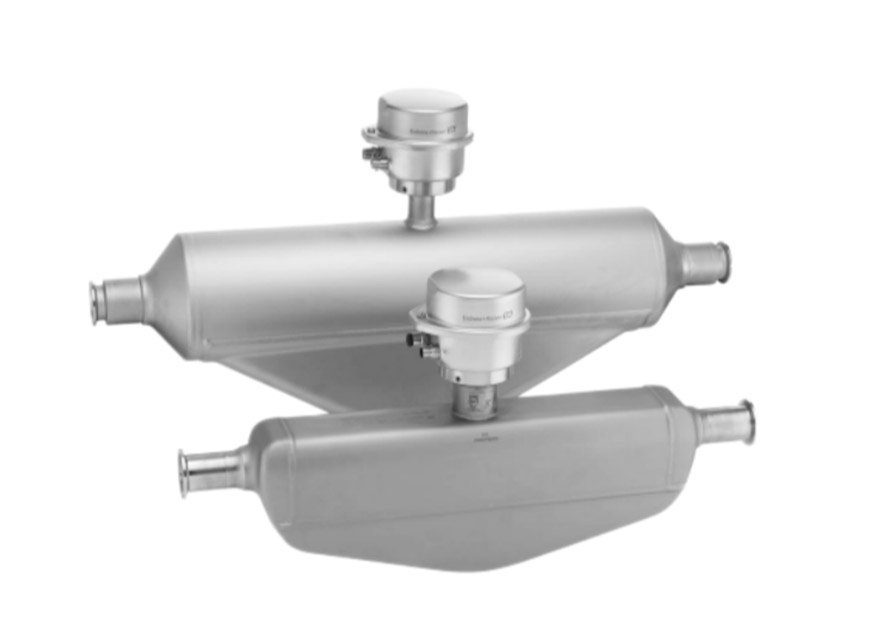

Easy-to-clean measuring instrument with self-drainable single-tube system and an ultra-compact transmitter
Application
• Measuring principle operates independently of physical fluid properties such as viscosity or density
• Dedicated to applications requiring optimal cleanability under hygienic conditions Device properties
• Large range of hygienic process connections
• 3-A and EHEDG conform
• Fast recovery from CIP/SIP
• Robust, ultra-compact transmitter housing
• Highest degree of protection: IP69K
• Local display available
Your benefits
• Increased process safety – easily cleanable and fully self‐ drainable tube design
• Fewer process measuring points – multivariable measurement (flow, density, temperature)
• Space-saving installation – no in-/outlet run needs
• Space‐saving transmitter – full functionality on smallest footprint • Time‐saving local operation without additional software and hardware – integrated web server
• Integrated verification – Heartbeat Technology
Specification | 8S1C (Promass S 100) | 8S3B (Promass S 300) | 8S5B (Promass S 500) |
Product Designation | Proline Promass S 100 / 8S1C | Proline Promass S 300 / 8S3B | Proline Promass S 500 / 8S5B |
Measurement Principle | Coriolis force, twin bent tube | Coriolis force, twin bent tube | Coriolis force, twin bent tube |
Measured Parameters | Mass flow, volume flow, density, temperature | Mass flow, volume flow, density, temperature | Mass flow, volume flow, density, temperature |
Nominal Diameter | DN 6～DN 50 | DN 6～DN 50 | DN 6～DN 50 |
Medium Type | Liquids, gases, low viscosity fluids | Liquids, gases, low viscosity fluids | Liquids, gases, low viscosity fluids |
Mass Flow Accuracy – Liquid | ±0.15 % o.r. | ±0.10 % o.r. | ±0.05 % o.r. (PremiumCal) |
Mass Flow Accuracy – Gas | ±0.75 % o.r. | ±0.50 % o.r. | ±0.35 % o.r. |
Density Accuracy | ±0.001 g/cm³ | ±0.0005 g/cm³ | ±0.0002 g/cm³ |
Repeatability | ±0.05 % o.r. | ±0.03 % o.r. | ±0.02 % o.r. |
Process Temperature Range | −50 °C … +150 °C | −50 °C … +200 °C | −50 °C … +200 °C |
Max Process Pressure | PN 40 / Class 150 / 20K | PN 100 / Class 600 / 63K | PN 100 / Class 600 / 63K |
Wetted Material | 1.4435 (316L), optional Alloy C22 | 1.4435 (316L), Alloy C22, Tantalum | 1.4435 (316L), high-alloy options |
Process Connection | Thread, Tri-Clamp, compact flange | Flange / Thread / Hygienic connection | Flange / Special high-pressure connection |
Transmitter Type | Ultra-compact integrated | Compact integrated | Modular, remote capable |
Power Supply | 18～30 VDC / 85～260 VAC | 16～62 VDC / 85～260 VAC | 16～62 VDC / 85～260 VAC |
Signal & Communication | 4–20 mA HART, PulseModbus RTU optional | 4–20 mA HART, Pulse, FrequencyPROFIBUS PA, Modbus RTU | HART 7, PROFINET, EtherNet/IPFOUNDATION Fieldbus, Digital I/O |
Enclosure Protection | IP67 / NEMA 4X | IP66 / IP67 / NEMA 4X | IP66 / IP67 / IP69K |
Ambient Temperature | −40 °C … +60 °C | −40 °C … +60 °C | −40 °C … +60 °C |
Certifications | CE, ATEX, IECEx | CE, ATEX, IECEx, FM, CSA, SIL 2 | CE, ATEX, IECEx, SIL 2/3, PED |
Core Features | Low cost, compact, basic industrial measurement | Cost-effective high precision, versatile I/O | High-precision custody transfer, Heartbeat Technology |
Typical Application | General industry, auxiliary pipeline, simple batching | Chemical, energy, food & beverage, process control | Custody transfer, high-precision dosing, critical process |

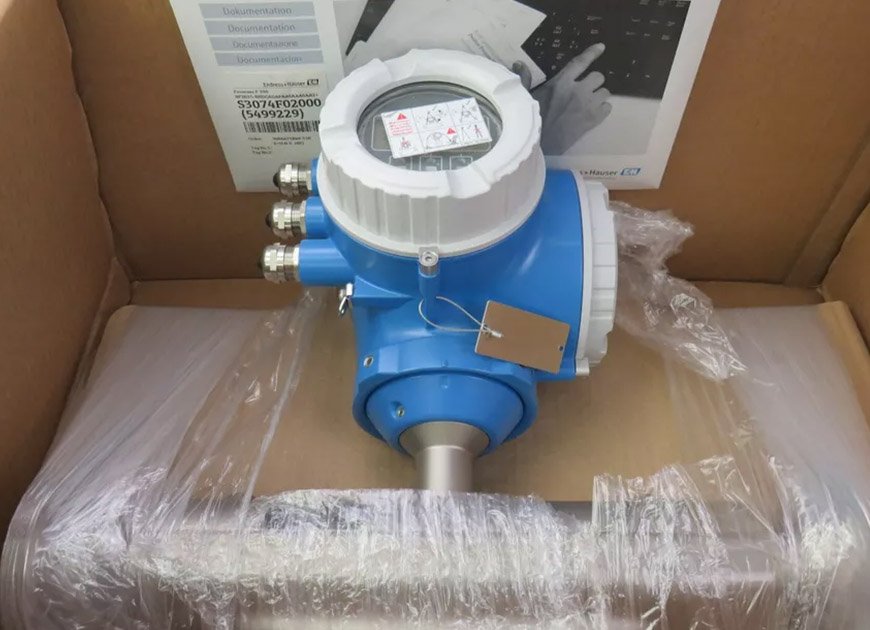

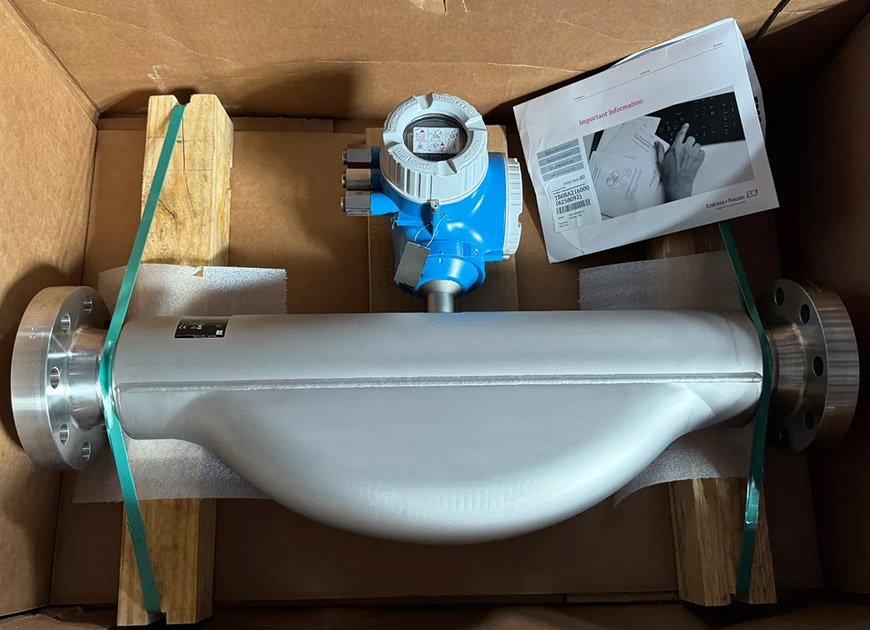

Packaging: Original box
