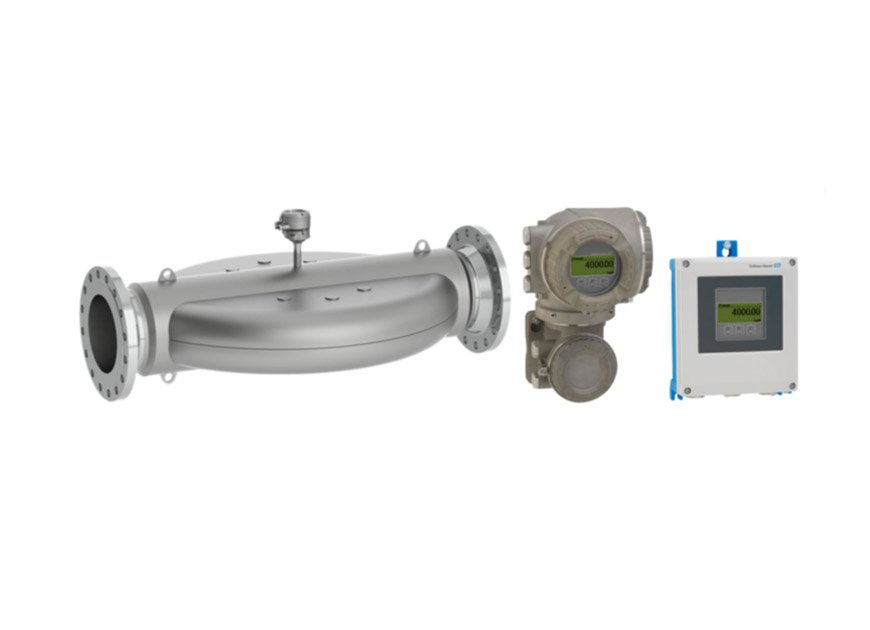

Highest capacity four-tube flowmeter, as remote version with up to 4 I/Os
Application
• Measuring principle operates independently of physical fluid properties such as viscosity or density
• For highest flow rates and outstanding performance in on-/ offshore oil and gas applications
Device properties
• Nominal diameter: DN 300 to 400 (12 to 16")
• Four-tube system with low pressure drop
• Complete exterior design made of 1.4435 (316L)
• Remote version with up to 4 I/Os
• Backlit display with touch control and WLAN access
• Standard cable between sensor and transmitter
Your benefits
• Increased profit – single installation point providing premium accuracy for large quantities
• Fewer process measuring points – multivariable measurement (flow, density, temperature)
• Space-saving installation – no in-/outlet run needs
• Full access to process and diagnostic information numerous, freely combinable I/Os and Ethernet
• Reduced complexity and variety – freely configurable I/O functionality • Integrated verification – Heartbeat Technology

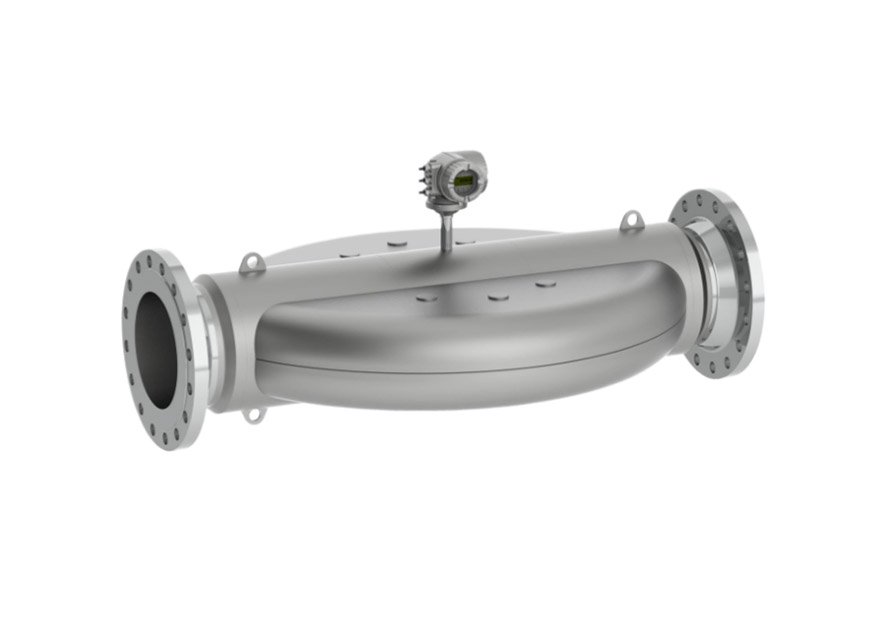

Highest capacity four-tube flowmeter with a compact, easily accessible transmitter
Application
• Measuring principle operates independently of physical fluid properties such as viscosity or density
• For highest flow rates and outstanding performance in on-/ offshore oil and gas applications Device properties
• Nominal diameter: DN 300 to 400 (12 to 16")
• Four-tube system with low pressure drop
• Complete exterior design made of 1.4435 (316L)
• Compact dual-compartment housing with up to 3 I/Os
• Backlit display with touch control and WLAN access
• Remote display available
Your benefits
• Increased profit – single installation point providing premium accuracy for large quantities
• Fewer process measuring points – multivariable measurement (flow, density, temperature)
• Space-saving installation – no in-/outlet run needs
• Full access to process and diagnostic information numerous, freely combinable I/Os and Ethernet
• Reduced complexity and variety – freely configurable I/O functionality • Integrated verification – Heartbeat Technology
Specification | 8X3B (Promass X 300, Compact Remote) | 8X5B (Promass X 500, High-Capacity Remote) |
Product Series | Proline Promass X 300 | Proline Promass X 500 |
Measurement Principle | Coriolis effect (four-tube design, multivariable: mass flow, volume flow, density, temperature) | Coriolis effect (four-tube design, multivariable: mass flow, volume flow, density, temperature) |
Nominal Diameter (DN) | DN 150 ~ DN 300 (6" ~ 12") | DN 300 ~ DN 400 (12" ~ 16") |
Max Flow Range (Liquid) | 0 ~ 2,200,000 kg/h (0 ~ 80,840 lb/min) | 0 ~ 4,100,000 kg/h (0 ~ 151,000 lb/min) |
Accuracy (Mass Flow, Liquid) | ±0.10% o.r. (standard); ±0.05% o.r. (PremiumCal option) | ±0.10% o.r. (standard); ±0.05% o.r. (PremiumCal option) |
Accuracy (Mass Flow, Gas) | ±0.35% o.r. | ±0.35% o.r. |
Accuracy (Density) | ±0.0005 g/cm³ | ±0.0005 g/cm³ |
Process Temperature | -50 ~ +180 °C (-58 ~ +356 °F) | -50 ~ +180 °C (-58 ~ +356 °F) |
Max Process Pressure | PN 100 / Class 600 (100 bar / 1,450 psi) | PN 100 / Class 600 (100 bar / 1,450 psi) |
Measuring Tube Material | 1.4404 (316L) / 1.4435 (316L) | 1.4404 (316L) / 1.4435 (316L) |
Process Connection | Flanged (ANSI Class 150/300/600, DIN PN10/PN16/PN100, JIS 10K/63K) | Flanged (ANSI Class 150/300/600, DIN PN10/PN16/PN100, JIS 10K/63K) |
Sensor Housing | 1.4404 (316L stainless steel) | 1.4404 (316L stainless steel) |
Transmitter Housing | Powder-coated aluminum / 1.4404 (316L) | Powder-coated aluminum / 1.4404 (316L) |
Power Supply | 16 ~ 62 VDC; 85 ~ 260 VAC (45–65 Hz) | 16 ~ 62 VDC; 85 ~ 260 VAC (45–65 Hz) |
Output & Communication | 4-20 mA HART, Pulse, Modbus RTU; Optional: EtherNet/IP, PROFIBUS PA, FOUNDATION Fieldbus | 4-20 mA HART, Pulse, Modbus RTU; Optional: EtherNet/IP, PROFIBUS PA, FOUNDATION Fieldbus |
Enclosure Rating | IP66 / IP67 / Type 4X | IP66 / IP67 / Type 4X |
Ambient Temperature | Standard: -40 ~ +60 °C (-40 ~ +140 °F); Option: -60 ~ +60 °C (-76 ~ +140 °F) | Standard: -40 ~ +60 °C (-40 ~ +140 °F); Option: -60 ~ +60 °C (-76 ~ +140 °F) |
Key Approvals | ATEX, IECEx, FM, CSA, SIL2, CE, PED, CRN, DNV, ABS | ATEX, IECEx, FM, CSA, SIL2, CE, PED, CRN, DNV, ABS |
Typical Applications | Onshore oil & gas, bulk liquid terminals, pipeline metering | Offshore platforms, high-flow crude oil/gas pipelines, LNG terminals |
Packaging: Original box
