Application
• Preferred measuring principle for wet/saturated/ superheated steam, gases & liquids (also cryogenic)
• Suitable for a wide range of applications; optimized for steam applications Device properties
• Wet steam capabilities for DN 25 to 300 (1 bis 12") Industrial siphon design for pressure measurement
• Flexible positioning of pressure cell
• Display module with data transfer function

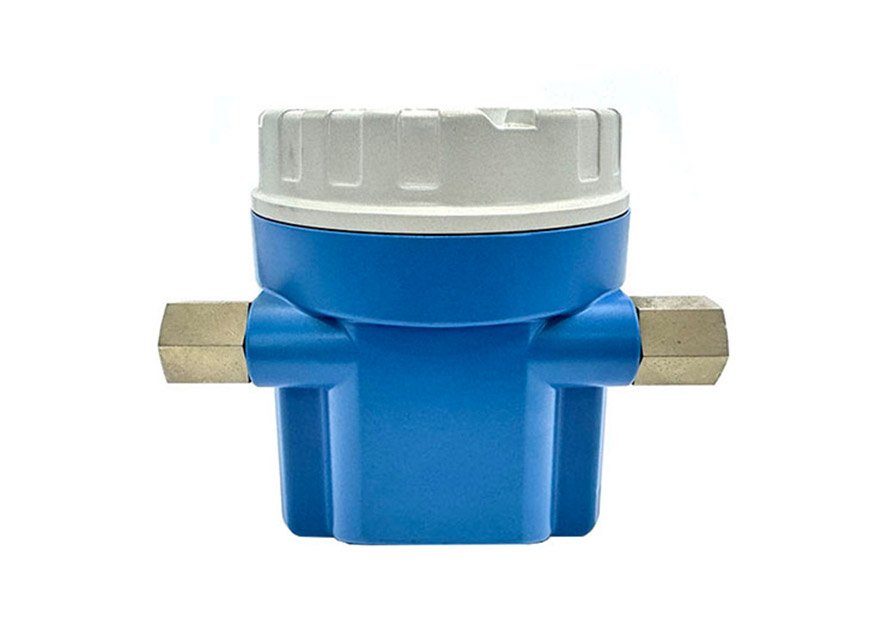

• Robust dual-compartment housing
• Plant safety: worldwide approvals (SIL, Haz. area)
Your benefits
• Easy energy management – integrated temperature and pressure measurement for steam and gases
• Reliable, secure measurement technology – compliance with international Vortex standard ISO 12764
• Same accuracy down to Re 10000 – most linear Vortex meter body
• Long-term stability – robust drift-free capacitive sensor
• Convenient device wiring – separate connection compartment, various output options including Ethernet
• Safe operation – no need to open the device due to display with touch control, background lighting
• Integrated verification – Heartbeat Technology
Specification | Details |

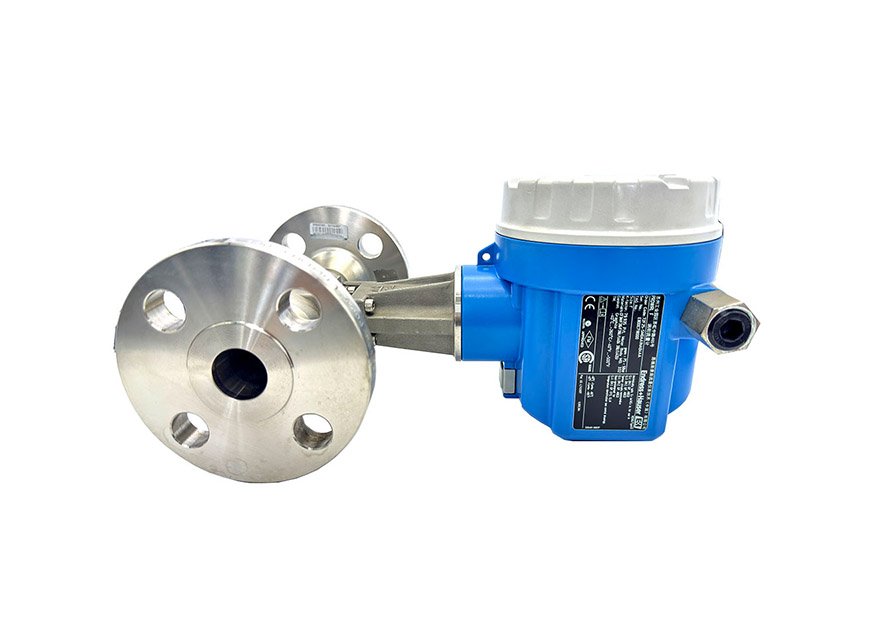

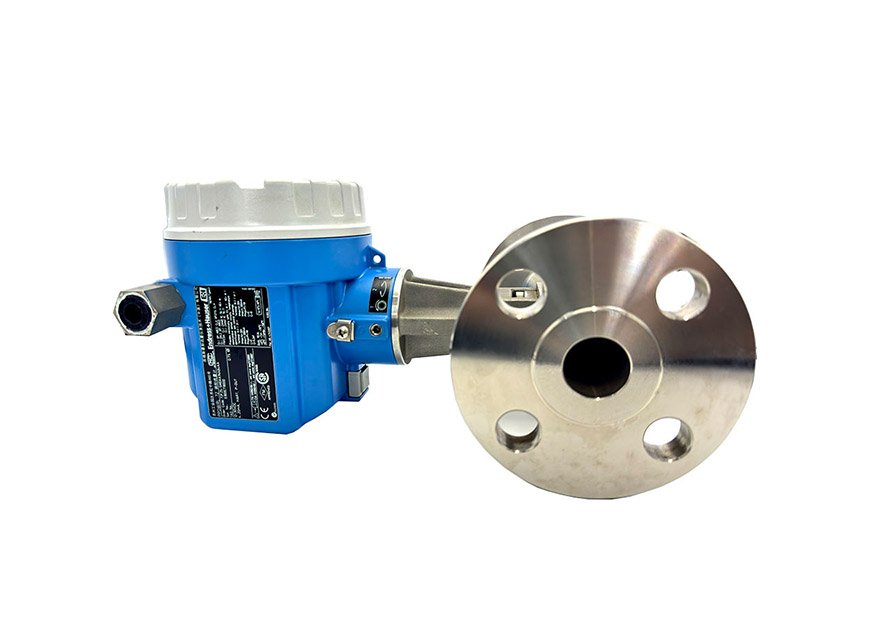

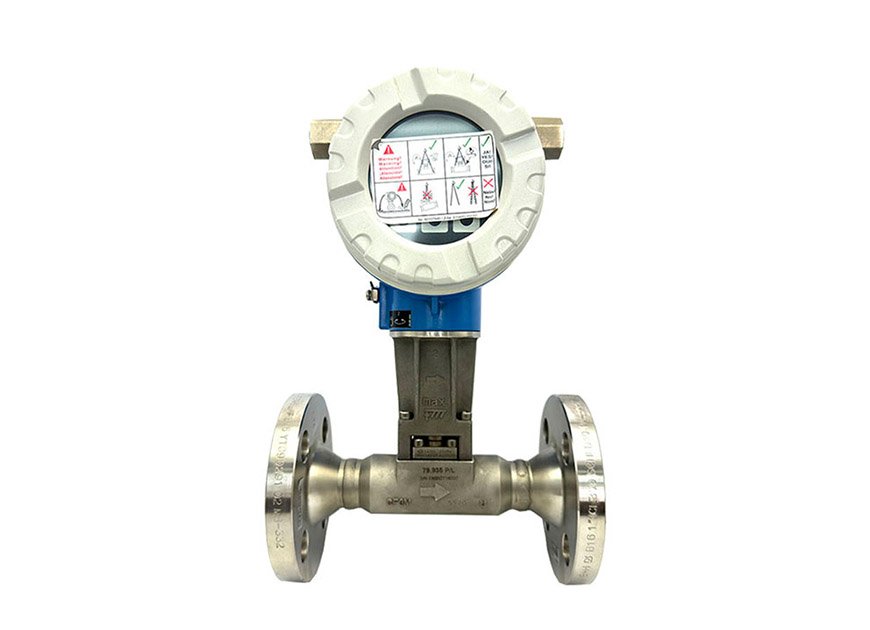

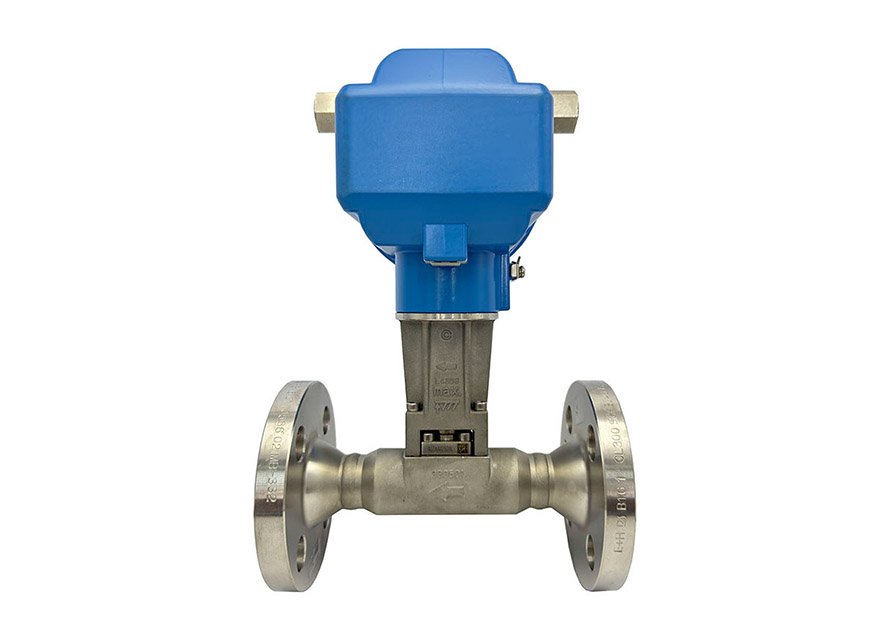

Product Model | Proline Prowirl F200 (7F2B / 7F2C) Vortex Flowmeter |
Measurement Principle | Von Kármán vortex street principle, with integrated temperature sensor |
Measured Media | Liquids, gases, saturated steam, superheated steam, wet steam |
Nominal Diameter (DN) | DN 25 ... DN 100 (1" ... 4") |
Accuracy (Volume Flow) | • Liquids: ±0.75% of measured value (optional ±0.65%) • Steam / Gas: ±1.00% of measured value |
Accuracy (Mass Flow) | • Liquids: ±0.85% • Saturated steam (temp compensated): ±1.7% • Saturated steam (temp/pressure compensated): ±1.5% • Superheated steam/gas (temp/pressure compensated): ±1.5% |
Flow Range | • Liquids: 0.2 ... 2100 m³/h• Steam / Gas: 1.5 ... 28000 m³/h |
Turndown Ratio | Up to 100:1 (depending on medium & process) |
Medium Temperature | • Standard: –40 °C ... +260 °C (–40 ... +500 °F) • High/Low Temp (option): –200 °C ... +400 °C (–328 ... +752 °F) • Special High Temp: up to +450 °C |
Max Process Pressure | PN 100 / Class 600 / 20K |
Wetted Materials | • Measuring tube: 1.4408 (CF3M), CX2MW (Alloy C22) • DSC Sensor: 1.4404 (316L), UNS N06022 (Alloy C22) • Process connection: 1.4404 (F316L), Alloy C22 |
Mounting | Integral (C), Remote (R) |
Power Supply | • 12 ... 35 VDC (4–20 mA HART) • 9 ... 32 VDC (PROFIBUS PA) |
Analog Output | 4 ... 20 mA DC, galvanically isolated, HART 7 compatible |
Digital Communication | HART 7, PROFIBUS PA (optional) |
Discrete I/O | Pulse / frequency output, status output, binary input |
Display | Backlit LCD with touch keys, multi-line, no need to open housing |
Ambient Temperature | –40 °C ... +65 °C (–40 ... +149 °F) |
Enclosure Rating | IP67, IP68 (optional) |
Special Features | • Wet steam detection & alarm • Integrated temperature measurement for mass/energy flow • Heartbeat™ self-diagnosis & verification • Dual sensor (DualSens) for redundant measurement (SIL) • Vibration resistant, water hammer proof • SIL 2 / SIL 3 certified (IEC 61508) |
Hazardous Area | ATEX, IECEx, FM, CSA, cCSAus |
Key Applications | Steam & boiler systems, process gases, utility liquids, energy metering, wet steam monitoring |
Packaging: Original box
