Application
• Preferred measuring principle for wet/saturated/ superheated steam, gases & liquids (also cryogenic)
• Dedicated to applications with very low flow or reduced flow Device properties
• Integrated diameter reduction by 1 or 2 line sizes Nominal diameter (mating pipe) up to DN 250 (10")

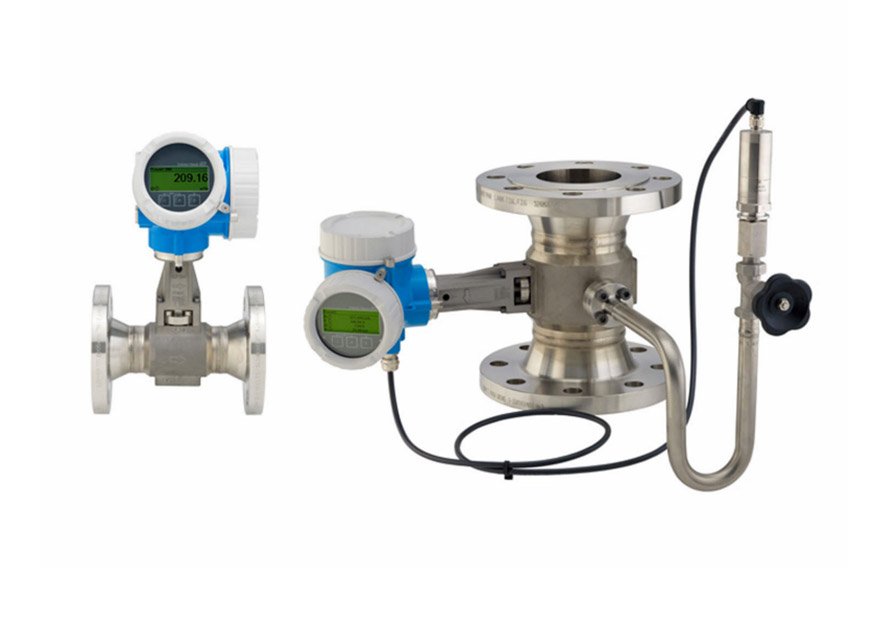

• Flexible positioning of pressure cell
• Display module with data transfer function
• Robust dual-compartment housing
• Plant safety: worldwide approvals (SIL, Haz. area)
Your benefits
• Easy energy management – integrated temperature and pressure measurement for steam and gases
• Cost and time savings – no pipework modifications needed for line size reduction
• Same accuracy down to Re 10000 – most linear Vortex meter body
• Long-term stability – robust drift-free capacitive sensor
• Convenient device wiring – separate connection compartment, various output options including Ethernet
• Safe operation – no need to open the device due to display with touch control, background lighting
• Integrated verification – Heartbeat Technology
Specification | Details |

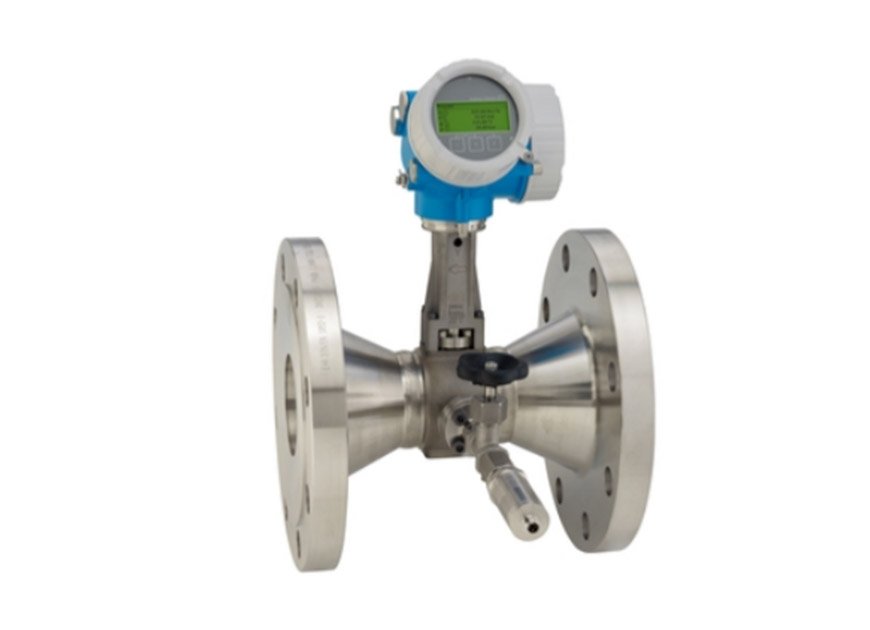

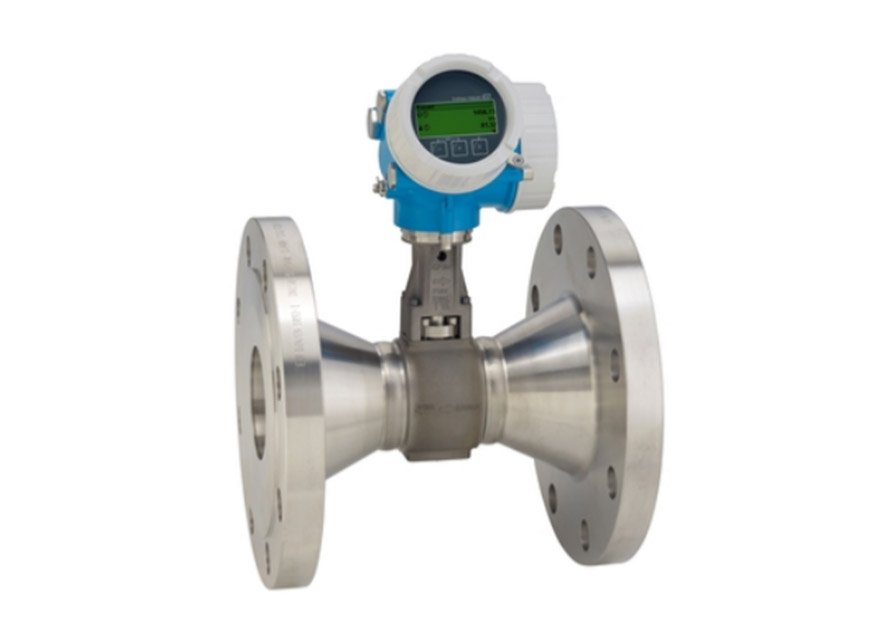

Product Type | Reduced bore multivariable vortex flowmeter |
Model | Proline Prowirl R200 (7R2) |
Measuring principle | Vortex shedding principle with integrated temperature sensor |
Measured media | Liquids, gases, saturated steam, superheated steam |
Nominal diameter (DN) | DN25 … DN250 (1" … 10") |
Flow accuracy | Liquids: ±0.75% o.r.Gases / steam: ±1.00% o.r. |
Turndown | Up to 100:1 |
Process temperature | Standard: -40 … +260 °COption: -200 … +400 °C |
Process pressure | Max. PN 40 / Class 300 |
Wetted materials | 1.4408 (316L), Alloy C22 (option) |
Mounting type | Wafer, integral or remote |
Power supply | 12 … 35 VDC |
Outputs & communication | 4–20 mA HART 7PROFIBUS PA (optional) |
Display | Backlit LCD, touch keys |
Ambient temperature | -40 … +65 °C |
Enclosure rating | IP67, IP68 (optional) |
Approvals | ATEX, IECEx, FM, CSA, SIL 2/3 |
Features | Reduced bore for low flowIntegrated temperature compensationHeartbeat self-diagnosticsWet steam detection |

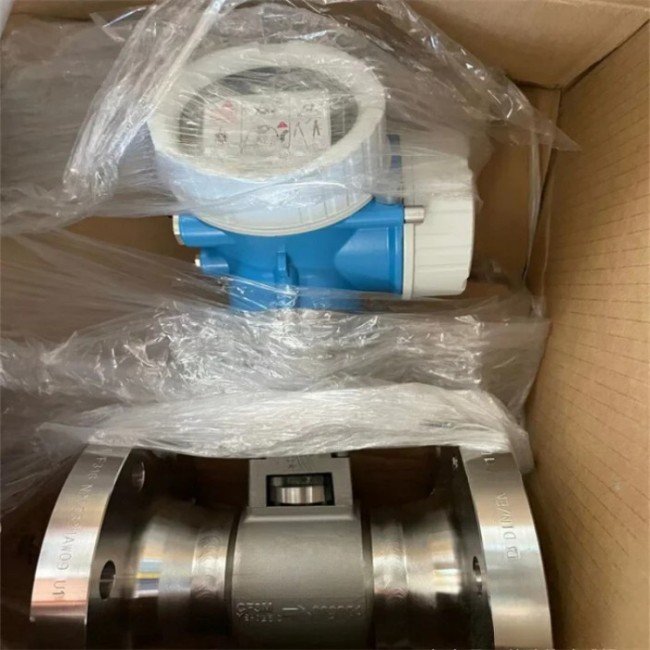

Packaging: Original box
