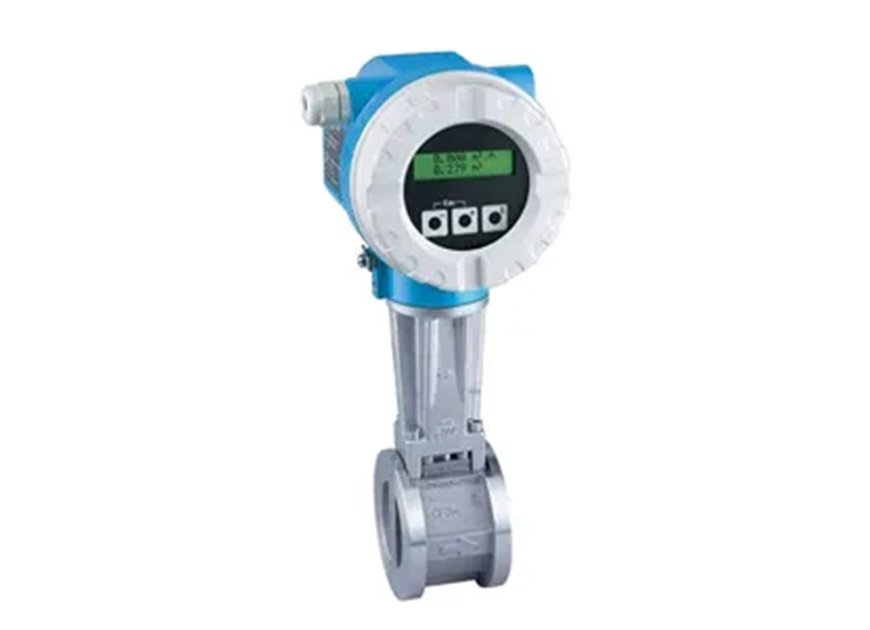

• Preferred measuring principle for wet/saturated/superheated steam, gases & liquids (also cryogenic)
• For all basic applications and for 1-to-1 replacement of orifice plates
• Face-to-face length of 65 mm (2.56 in)
• No flanges
• Low weight
• Display module with data transfer function
• Robust dual-compartment housing
• Plant safety: worldwide approvals (SIL, Haz. area)
• Integrated temperature measurement for mass/energy flow of saturated steam
• Easy alignment of the sensor – included centering rings
• High availability – proven robustness, resistance to vibrations, temperature shocks & water hammer
• Long-term stability – robust drift-free capacitive sensor
• Convenient device wiring – separate connection compartment, various output options including Ethernet
• Safe operation – no need to open the device due to display with touch control, background lighting
• Integrated verification – Heartbeat Technology
Specification | Standard Version | High Accuracy Version | High Pressure / High Temperature Version |
Product Designation | Endress+Hauser Proline Prowirl D200 Vortex Flow Meter (Model 7D2C) | Endress+Hauser Proline Prowirl D200 High Accuracy Vortex Flow Meter (Model 7D2C) | Endress+Hauser Proline Prowirl D200 High Pressure/High Temperature Vortex Flow Meter (Model 7D2C) |
Measurement Principle | Kármán Vortex Street Principle (no moving parts, obstructionless full-bore design) | Kármán Vortex Street Principle (no moving parts, obstructionless full-bore design) | Kármán Vortex Street Principle (no moving parts, obstructionless full-bore design) |
Applicable Media | Liquids, gases, vapors (saturated steam, superheated steam); no minimum conductivity requirement, non-conductive media measurable | Liquids, gases, vapors (saturated steam, superheated steam); no minimum conductivity requirement, non-conductive media measurable | Liquids, gases, vapors (saturated steam, superheated steam); no minimum conductivity requirement, non-conductive media measurable; special materials for corrosive/abrasive media |
Nominal Pipe Size (DN/NPS) | DN15 (1/2") to DN300 (12") | DN15 (1/2") to DN300 (12") | DN15 (1/2") to DN200 (8") |
Flow Velocity Range | - Liquids: 0.3 m/s to 10 m/s (1 ft/s to 32.8 ft/s)- Gases: 2 m/s to 80 m/s (6.6 ft/s to 262.5 ft/s)- Vapors/Steam: 5 m/s to 80 m/s (16.4 ft/s to 262.5 ft/s) | - Liquids: 0.3 m/s to 10 m/s (1 ft/s to 32.8 ft/s)- Gases: 2 m/s to 80 m/s (6.6 ft/s to 262.5 ft/s)- Vapors/Steam: 5 m/s to 80 m/s (16.4 ft/s to 262.5 ft/s) | - Liquids: 0.3 m/s to 10 m/s (1 ft/s to 32.8 ft/s)- Gases: 2 m/s to 80 m/s (6.6 ft/s to 262.5 ft/s)- Vapors/Steam: 5 m/s to 80 m/s (16.4 ft/s to 262.5 ft/s) |
Measurement Accuracy | - Liquids: ±0.75% of measured value (over 10:1 turndown ratio)- Gases/Vapors: ±1.0% of measured value (over 10:1 turndown ratio) | - Liquids: ±0.5% of measured value (over 20:1 turndown ratio)- Gases/Vapors: ±0.75% of measured value (over 20:1 turndown ratio) | - Liquids: ±0.75% of measured value (over 10:1 turndown ratio)- Gases/Vapors: ±1.0% of measured value (over 10:1 turndown ratio) |
Repeatability | ±0.2% of measured value | ±0.15% of measured value | ±0.2% of measured value |
Maximum Operating Pressure | Up to PN100 (Class 600) | Up to PN100 (Class 600) | Up to PN160 (Class 900) |
Medium Temperature Range | -200 °C to +400 °C (-328 °F to +752 °F) | -200 °C to +400 °C (-328 °F to +752 °F) | Up to +450 °C (+842 °F) with high temperature materials |
Ambient Temperature Range | -40 °C to +85 °C (-40 °F to +185 °F) | -40 °C to +85 °C (-40 °F to +185 °F) | -40 °C to +85 °C (-40 °F to +185 °F) |
Power Supply | - Loop-powered: 10 VDC to 30 VDC (for 4-20mA output)- Line-powered: 85 VAC to 265 VAC (50/60 Hz)- Power consumption: < 2 W (loop-powered), < 5 W (line-powered) | - Loop-powered: 10 VDC to 30 VDC (for 4-20mA output)- Line-powered: 85 VAC to 265 VAC (50/60 Hz)- Power consumption: < 2 W (loop-powered), < 5 W (line-powered) | - Loop-powered: 10 VDC to 30 VDC (for 4-20mA output)- Line-powered: 85 VAC to 265 VAC (50/60 Hz)- Power consumption: < 2 W (loop-powered), < 5 W (line-powered) |
Output Signals | Standard: 4-20 mA DC analog output (loop-powered)Optional: HART 7 digital communication over 4-20mA loop | Standard: 4-20 mA DC analog output (loop-powered)Optional: HART 7 digital communication over 4-20mA loop | Standard: 4-20 mA DC analog output (loop-powered)Optional: HART 7 digital communication over 4-20mA loop |
Optional Communication Protocols | PROFIBUS PA, FOUNDATION Fieldbus H1, Modbus RTU/TCP, EtherNet/IP | PROFIBUS PA, FOUNDATION Fieldbus H1, Modbus RTU/TCP, EtherNet/IP | PROFIBUS PA, FOUNDATION Fieldbus H1, Modbus RTU/TCP, EtherNet/IP |
Standard Process Connections | DIN EN 1092-1 PN16/PN40/PN63/PN100, ANSI B16.5 Class 150/300/600, JIS B2220 10K/20K/30K/40K | DIN EN 1092-1 PN16/PN40/PN63/PN100, ANSI B16.5 Class 150/300/600, JIS B2220 10K/20K/30K/40K | DIN EN 1092-1 PN16/PN40/PN63/PN100/PN160, ANSI B16.5 Class 150/300/600/900, JIS B2220 10K/20K/30K/40K |
Optional Process Connections | Welded ends, threaded connections, sanitary flanges | Welded ends, threaded connections, sanitary flanges | Welded ends, threaded connections |
Standard Wetted Material | 316L Stainless Steel (1.4404) | 316L Stainless Steel (1.4404) | 316L Stainless Steel (1.4404) |
Optional Wetted Materials | Hastelloy C276, Titanium Grade 2, Tantalum | Hastelloy C276, Titanium Grade 2, Tantalum | Hastelloy C276, Titanium Grade 2, Tantalum |
Enclosure Protection Rating | IP66 / IP67, NEMA Type 4X / 6P | IP66 / IP67, NEMA Type 4X / 6P | IP66 / IP67, NEMA Type 4X / 6P |
Explosion Protection Certifications | Standard: ATEX, IECEx, FM, CSA, CCCOptional: Intrinsic Safety (Ex ia IIC T4/T5/T6 Ga), Flameproof (Ex d IIC T4/T5/T6 Gb), Non-incendive (Ex nA IIC T4/T5/T6 Gc) | Standard: ATEX, IECEx, FM, CSA, CCCOptional: Intrinsic Safety (Ex ia IIC T4/T5/T6 Ga), Flameproof (Ex d IIC T4/T5/T6 Gb), Non-incendive (Ex nA IIC T4/T5/T6 Gc) | Standard: ATEX, IECEx, FM, CSA, CCCOptional: Intrinsic Safety (Ex ia IIC T4/T5/T6 Ga), Flameproof (Ex d IIC T4/T5/T6 Gb), Non-incendive (Ex nA IIC T4/T5/T6 Gc) |
Core Control & Diagnostic Features | Bi-directional flow measurement, multi-variable measurement (volumetric flow, mass flow, temperature, pressure with optional sensors), empty pipe detection, vortex signal quality diagnostics, self-calibration, auto-zero adjustment, data logging, event logging, configurable flow units, high shock & vibration resistance | Bi-directional flow measurement, multi-variable measurement (volumetric flow, mass flow, temperature, pressure with optional sensors), empty pipe detection, vortex signal quality diagnostics, self-calibration, auto-zero adjustment, data logging, event logging, configurable flow units, high shock & vibration resistance, advanced signal processing | Bi-directional flow measurement, multi-variable measurement (volumetric flow, mass flow, temperature, pressure with optional sensors), empty pipe detection, vortex signal quality diagnostics, self-calibration, auto-zero adjustment, data logging, event logging, configurable flow units, high shock & vibration resistance, high pressure/temperature compensation |
Configuration Tools | Endress+Hauser FieldCare™, Commubox™, AMS Device Manager, HART Communicator (Model 375/475) | Endress+Hauser FieldCare™, Commubox™, AMS Device Manager, HART Communicator (Model 375/475) | Endress+Hauser FieldCare™, Commubox™, AMS Device Manager, HART Communicator (Model 375/475) |
Typical Applications | Oil & gas production, midstream/downstream processing, chemical & petrochemical industry, power generation, water & wastewater treatment, food & beverage, pharmaceutical industry, pulp & paper | High-precision process control, custody transfer, chemical dosing, food & beverage batching, pharmaceutical production | High pressure/high temperature process applications, oil & gas upstream/downstream, chemical processing, power generation boiler feedwater/steam systems |

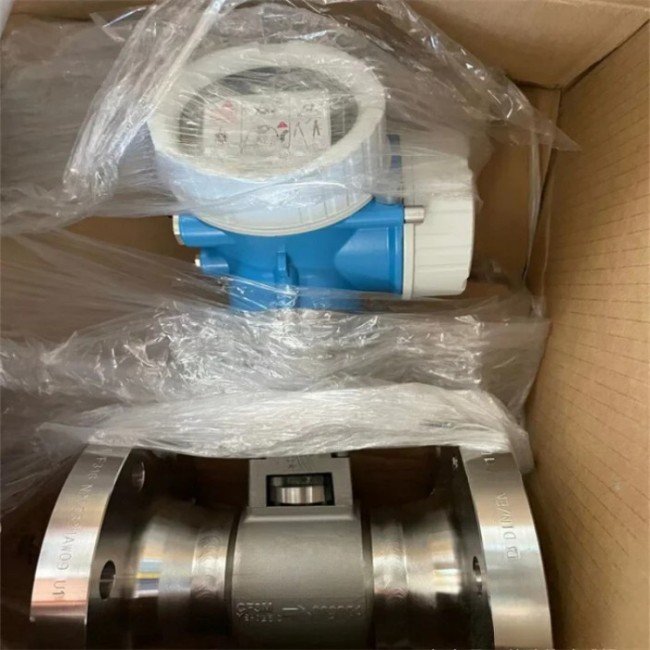

Packaging: Original box
