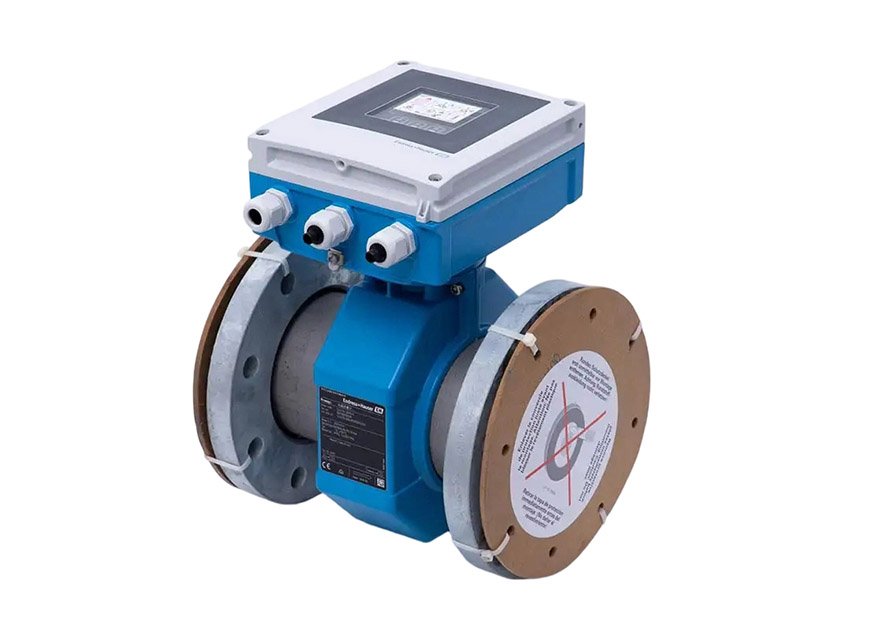

Specialist for demanding water and wastewater applications with a compact, easily accessible transmitter
Application
• The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity
• Suitable for elementary measurement tasks such as raw water intake Device properties
• International drinking water approvals
• Degree of protection IP68 (Type 6P enclosure)
• Compact dual-compartment housing with up to 3 I/Os
• Backlit display with touch control and WLAN access
• Remote display available
Your benefits
• Reliable measurement at constant accuracy with 0 x DN inlet run and no pressure loss
• Flexible engineering – sensor with fixed or lap-joint process connections
• Long-term operation – robust and completely welded sensor
• Improved plant availability – sensor compliant with industry-specific requirements
• Full access to process and diagnostic information – numerous, freely combinable I/Os and Ethernet
• Reduced complexity and variety – freely configurable I/O functionality
• Integrated verification – Heartbeat Technology

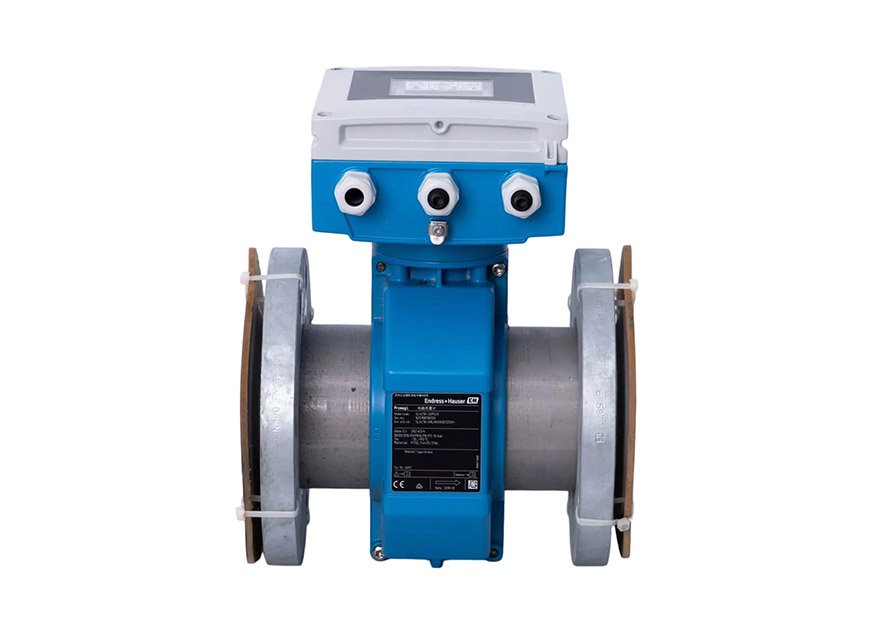

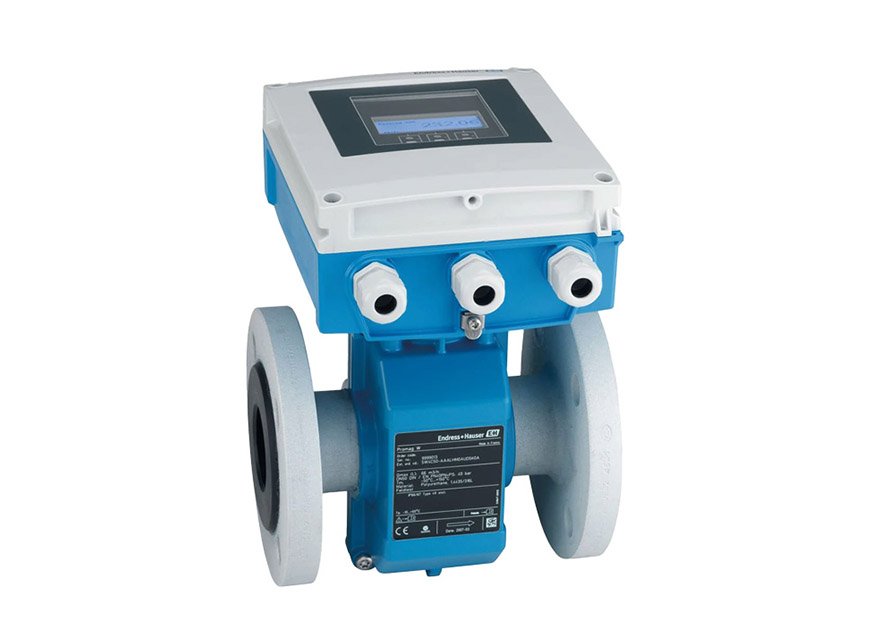

Versatile standard flowmeter for the water and wastewater industry
Application
• The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity
• Ideal for water measurement, e.g. drinking water, utility water and industrial/municipal wastewater Device properties
• International drinking water approvals
• Degree of protection IP68 (Type 6P enclosure)
• Approved for custody transfer to MI-001/OIML R49
• Transmitter housing made of durable polycarbonate or aluminum
• WLAN access
• Integrated data logger: measured values monitoring
Your benefits
• Reliable measurement at constant accuracy with 0 x DN run without pressure loss
• Flexible engineering – sensors with fixed flanges or lap joint flanges
• Application suitability – corrosion protection according to EN ISO 12944 for buried or underwater installations
• Improved plant availability – sensor compliant with industry-specific requirements
• Safe operation – no need to open device
• Time‐saving local operation without additional software and hardware – integrated web server
• Built-in verification and build-up detection – Heartbeat Technology

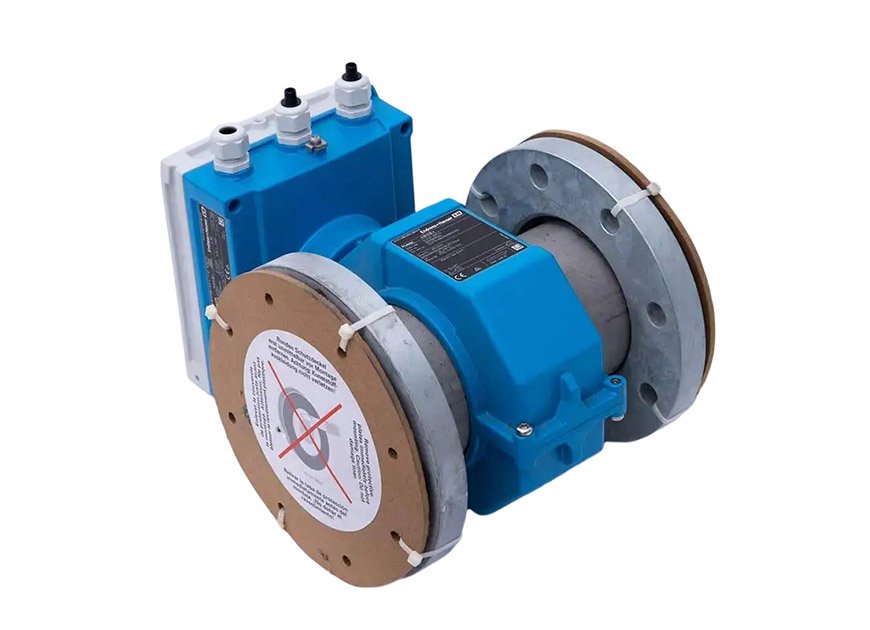

Specialist for demanding water and wastewater applications as remote version with up to 4 I/Os
Application
• The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity
• Suitable for elementary measurement tasks such as raw water intake Device properties
• International drinking water approvals
• Degree of protection IP68 (Type 6P enclosure)
• Remote version with up to 4 I/Os
• Backlit display with touch control and WLAN access
• Standard cable between sensor and transmitter
Your benefits
• Reliable measurement at constant accuracy with 0 x DN inlet run and no pressure loss
• Flexible engineering – sensor with fixed or lap-joint process connections
• Application fitness – EN ISO 12944 corrosion protection for underground or underwater installation
• Improved plant availability – sensor compliant with industry-specific requirements
• Full access to process and diagnostic information – numerous, freely combinable I/Os and Ethernet
• Reduced complexity and variety – freely configurable I/O functionality
• Integrated verification – Heartbeat Technology
Long-lasting battery-powered magmeter with secure system integration and communication
Application
• The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity
• Available as enhanced version for full performance and standard version for basic functionality.
• Designed for drinking water distribution networks in regions without power supply Device properties
• International drinking water approvals
• Degree of protection IP68 (Type 6P enclosure)
• Transmitter housing made of durable polycarbonate
• Battery life time up to 15 years
• Measuring intervals can be adapted individually
Your benefits
• With corrosion protection for underground installation or permanent underwater use
• Improved process safety – leakage detection with low flow and pressure measurement
• Reliable measurement – accurate measured values even with 0 x DN inlet run
• Long-term operation – robust and completely welded sensor
• Secure data storage and transmission – worldwide encrypted communication over the mobile network
• Convenient commissioning and operation – device access via Bluetooth using intuitive SmartBlue app
• Integrated verification – Heartbeat Technology
Specification | 5W3B (Promag W300, Compact) | 5W4C (Promag W400, Standard) | 5W5B (Promag W500, High-end/Remote) | 5W8C (Promag W800, Battery-powered) |
Product Series | Proline Promag W 300 | Proline Promag W 400 | Proline Promag W 500 | Proline Promag W 800 |
Measurement Principle | Electromagnetic induction (Faraday’s Law) | Electromagnetic induction (Faraday’s Law) | Electromagnetic induction (Faraday’s Law) | Electromagnetic induction (Faraday’s Law) |
Nominal Diameter (DN) | DN 25 ~ DN 3000 (1" ~ 120") | DN 25 ~ DN 3000 (1" ~ 120") | DN 25 ~ DN 3000 (1" ~ 120") | DN 100 ~ DN 2400 (4" ~ 96") |
Min. Conductivity | ≥ 5 μS/cm | ≥ 5 μS/cm | ≥ 5 μS/cm | ≥ 5 μS/cm |
Flow Velocity Range | 0.01 ~ 10 m/s | 0.01 ~ 10 m/s | 0.01 ~ 10 m/s | 0.01 ~ 10 m/s |
Accuracy (Standard) | ±0.5% o.r. ± 1 mm/s | ±0.5% o.r. ± 1 mm/s | ±0.5% o.r. ± 1 mm/sEndress+Hauser | ±0.5% o.r. ± 2 mm/s |
Accuracy (Optional) | ±0.2% o.r. ± 2 mm/s | ±0.2% o.r. ± 2 mm/s | ±0.2% o.r. ± 2 mm/sEndress+Hauser | — |
Process Temperature | - Hard rubber: 0 ~ +80 °C- Polyurethane: -20 ~ +50 °C- PTFE: -20 ~ +90 °C | - Hard rubber: 0 ~ +80 °C- Polyurethane: -20 ~ +50 °C- PTFE: -20 ~ +90 °C | - Hard rubber: 0 ~ +80 °C- Polyurethane: -20 ~ +50 °C- PTFE: -20 ~ +90 °CEndress+Hauser | - Hard rubber: 0 ~ +80 °C- Polyurethane: -20 ~ +50 °C |
Max Process Pressure | PN 40, Class 300, 20K | PN 40, Class 300, 20K | PN 40, Class 300, 20KEndress+Hauser | PN 16 / PN 25 |
Liner Material | Hard rubber, Polyurethane, PTFE | Hard rubber, Polyurethane, PTFE | Hard rubber, Polyurethane, PTFE | Hard rubber, Polyurethane |
Electrode Material | 316L (1.4435), Alloy C22, Tantalum | 316L, Alloy C22, Tantalum | 316L, Alloy C22, Tantalum | 316L standard |
Process Connection | Flanged (EN, ASME, JIS), Lap-joint | Flanged, Lap-joint | Flanged, Lap-joint, Remote sensor | Flanged |
Housing Material | Coated aluminum | Coated aluminum | Stainless steel / coated aluminum | Stainless steel |
Power Supply | 100~230 VAC / 18~30 VDC | 100~230 VAC / 18~30 VDC | 100~230 VAC / 18~30 VDC | Internal battery (up to 15 years) |
Output & Communication | 4-20 mA HART, Pulse, Modbus RTU | 4-20 mA HART, Pulse, Modbus, Profibus DP/PAEndress+Hauser | Full: HART, Profibus, FF, PROFINET, Ethernet/IP, OPC UA | GSM/GPRS modem, Data logging (SD card) |
Enclosure Rating | IP66 / IP67 | IP66 / IP67 / IP68 (submersible) | IP66 / IP67 / IP68 / IP69K | IP68 (underwater/underground) |
Ambient Temperature | -20 ~ +60 °C | -20 ~ +60 °C | -40 ~ +60 °C | -20 ~ +60 °C |
Key Approvals | KTW, WRAS, NSF, ACS, CE, ATEXEndress+Hauser | KTW, WRAS, NSF, ACS, CE, ATEX, SIL2Endress+Hauser | KTW, WRAS, NSF, ACS, CE, ATEX, SIL2/3 | Drinking water approvals, CE |
Typical Applications | Compact water/wastewater skids | Municipal water networks, standard wastewater | Remote monitoring, high-demand networks | No power sites, buried/underwater, remote telemetry |

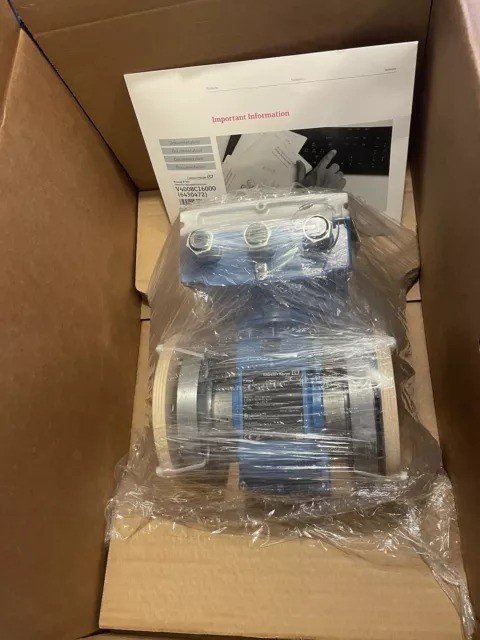

Packaging: Original box
